Circulation water pump
Plugs

The circulation water pump can working with linsam heat pumps, for circulate water, easy installation and top quality.

OPERATING LIMITS
– Thermal carrier fluid: water
– Water temperature: min -10°C, max +85°C
– Air temperature: max + 40°C
– Above sea level: maximum 1000m
– Max water pressure during operation: 8 bars

Get a quick quote

    Inquire Now

    Technical Parameters

    Model Motor Q(l/min) 20 40 60 80 100 120 140 160 200 250 300 330 350 400 450
    Power input kW Q(m3/h) 1.2 2.4 3.6 4.8 6 7.2 8.4 9.6 12 15 18 20 21 24 27
    MS60/0.37 0.37 H(m) 17.7 16.4 14.6 11.4
    MS60/0.55 0.55 22.7 21.3 19.5 16.2
    MS60/0.75 0.75 28.2 26.8 25 22
    MS100/0.55 0.55 17.8 16.7 15.4 14 12.2 9.9
    MS100/1.1 1.1 27.4 26.3 25 23.4 21.5 19.5 16.7
    MS160/0.75 0.75 15.5 15.3 15 14.8 14.3 13.8 12.5
    MS160/1.1 1.1 19.7 19.5 19.3 19.1 18.7 18.2 16.5
    MS250/1.1 1.1 15.8 15.6 15.4 15 14.3 13 11.5
    MS250/1.5 1.5 23.2 23 22.7 22.2 21.4 19.8 17.7
    MS250/2.2 2.2 28.2 27.8 27.5 27 26.2 24.6 22.6
    MS330/1.5 1.5 18.8 18.7 18.5 17.8 16.7 15 14 13.5 11.6
    MS330/2.2 2.2 22.5 22.2 22 21.5 20.3 18.7 17.5 16.8 14.8 12.3
    circulation water pump structure
    Water pump spare parts diagram

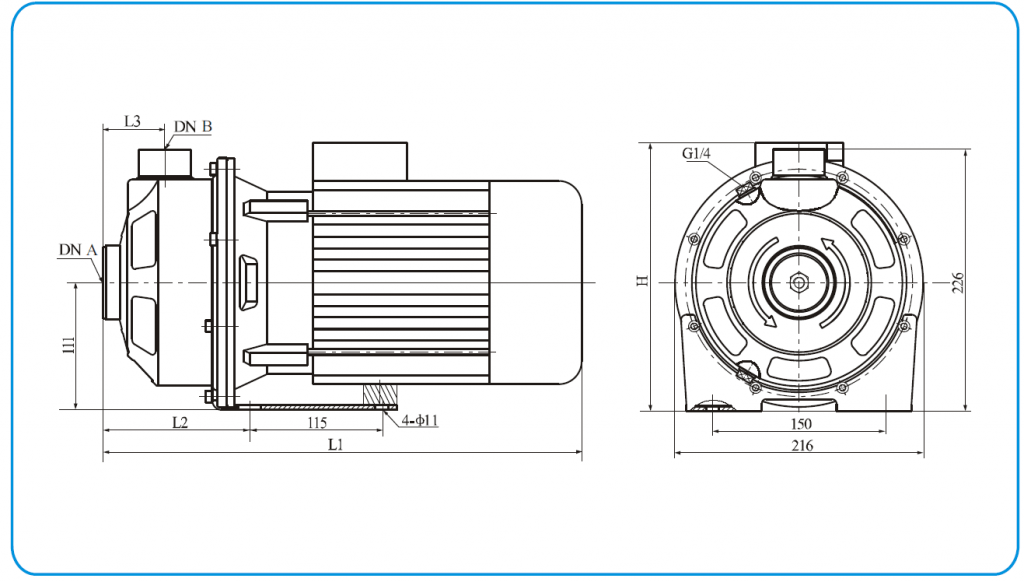

    Water pump installation diagram

    Please provide a valid CSV file.

    Model Motor L1 L2 L3 H DN A DN B Weight
    Phase Power input kW (mm) (mm) (mm) (mm) Inlet Outlet kg
    MS60/0.37 220V/1Ph/50HZ or 380V/3Ph/50HZ 0.37 328 113 51 216/230 G1 1/4 G1 10
    MS60/0.55 220V/1Ph/50HZ or 380V/3Ph/50HZ 0.55 328 113 51 216/230 G1 1/4 G1 12
    MS60/0.75 220V/1Ph/50HZ or 380V/3Ph/50HZ 0.75 361 113 51 223/245 G1 1/4 G1 14
    MS100/0.55 220V/1Ph/50HZ or 380V/3Ph/50HZ 0.55 328 113 51 216/230 G1 1/4 G1 12
    MS100/1.1 220V/1Ph/50HZ or 380V/3Ph/50HZ 1.1 361 113 51 223/245 G1 1/4 G1 16
    MS160/0.75 220V/1Ph/50HZ or 380V/3Ph/50HZ 0.75 375 127 54 223/245 G1 1/2 G1 1/4 14
    MS160/1.1 220V/1Ph/50HZ or 380V/3Ph/50HZ 1.1 375 127 54 223/245 G1 1/2 G1 1/4 16
    MS250/1.1 220V/1Ph/50HZ or 380V/3Ph/50HZ 1.1 375 127 54 223/245 G1 1/2 G1 1/4 16
    MS250/1.5 220V/1Ph/50HZ or 380V/3Ph/50HZ 1.5 415 127 54 232/253 G1 1/2 G1 1/4 20
    MS250/2.2 220V/1Ph/50HZ or 380V/3Ph/50HZ 2.2 415 127 54 232/253 G1 1/2 G1 1/4 23
    MS330/1.5 220V/1Ph/50HZ or 380V/3Ph/50HZ 1.5 415 127 54 232/253 G2 G1 1/4 20
    MS330/2.2 220V/1Ph/50HZ or 380V/3Ph/50HZ 2.2 415 127 54 232/253 G2 G1 1/4 23
